• Ashtray

• 105 amp alternator
• Rear wheel drive

• Daytime running lights

HYDRAULIC ANTI-LOCK DISC BRAKES

• high performance booster
• independent front/rear circuits
• (2) front/(2) rear pistons
• trans mounted drum type parking brake (STD)

DELCO AM/FM STEREO W/CASSETTE

• digital display
• clock
• seek-scan
• auto reverse
• (2) front/(2) rear speakers

210 GROSS HP @ 2200 RPM, 605 LB/FT GROSS TORQUE @ 1440 RPM 7.2L (442) HEUI I6 TURBOCHARGED/AFTERCOOLED CATERPILLAR 3126B DIESEL ENGINE

• 2500 rpm governed speed

UP-LEVEL CONVENIENCE & DECOR PKG

• cloth interior
• beverage holder
• passenger grab
• handle
• dual coat hooks
• increased cab insulation
• door trim panels & driver side pocket

GRAB HANDLE

• passenger side interior roof mount

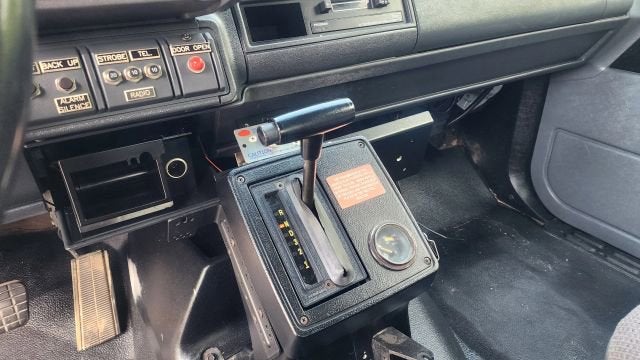

TRANS TEMP GAUGE

• lighted gauge located near shift tower

INTEGRAL AIR CONDITIONING

• soft touch buttons for mode
• fan & temp controls
• visual function display
• Sanden compressor
• R134a alternate refrigerant

4-SPEED MT643D ALLISON AUTOMATIC TRANSMISSION

• increased cooling

750CCA DELCO LINEHAUL GROUP 31-1110 SERIES DUAL BATTERIES

• 1500 total CCA

TACHOMETER & ENGINE ALARM

• low oil pressure/high water temp indicator

OIL LUBRICATED FRONT WHEEL HUBS

• clear caps
• oil seals
• 75W-90 synthetic oil
• fill plugs & windows

SLOPED HOOD

• forward tilt one-piece fiberglass hood (STD)

SINGLE HORIZONTAL EXHAUST SYSTEM

• (STD)

SOLAR-RAY TINTED GLASS

• all windows
• upper windshield shade band

175" WHEELBASE

• 102" CA
• 171" CE

LOW PROFILE CHASSIS MODIFICATION

• 2.8" approx frame height reduction
• notched frame sidemember above rear axle
• horizontal exhaust modification

DUAL ELECTRIC HORNS

• front bumper mount

1000W PHILLIPS BLOCK HEATER

• cord w/120v plug & plug protector

16,900 LB TAPERED LEAF REAR SUSPENSION

• HD rear shock absorbers

2-TONE EXTERIOR PAINT

• white upper

HOBBS ELECTRIC ENGINE HOURMETER

• dash mount

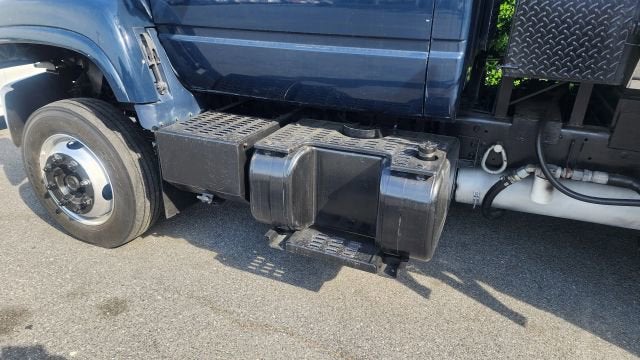

DUAL RH/LH 35 GALLON FUEL TANKS

• elect gas transfer or diesel balance line

TRUCK APPLICATION

• (STD)

DUAL 7" X 16" EXTERIOR SIDE MIRRORS

• stainless steel heads & brackets

RH/LH 5" SPOT MIRRORS W/BRACKET MOUNT

• stainless steel heads & clamps

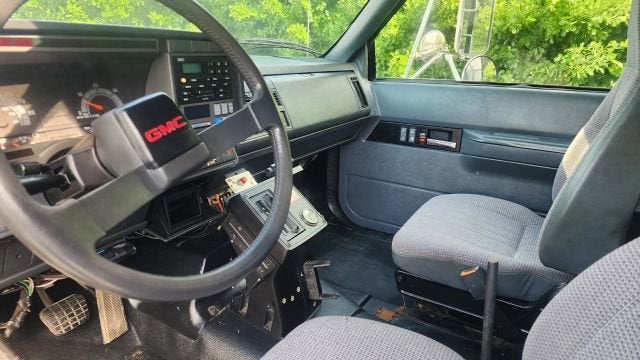

TILT STEERING WHEEL

• 18" diameter wheel
• intermittent wipers

8,100 LB CAPACITY FRONT AXLE

• (STD)

JUMP START PROVISIONS

• positive terminal located on curbside fender extension
• routed directly to starter
• and a bolt bolt on battery box for convenient grounding

• 100 AMP DELCO REMY 21 SI ALTERNATOR
• HYDRAULIC ANTI-LOCK DISC BRAKES -inc: high performance booster independent front/rear circuits (2) front/(2) rear pistons trans mounted drum type parking brake (STD)
• FRONT STABILIZER BAR
• DELCO AM/FM STEREO W/CASSETTE -inc: digital display clock seek-scan auto reverse (2) front/(2) rear speakers
• FRONT EXTRA STRENGTH HIGHWAY TREAD
• 210 GROSS HP @ 2200 RPM 605 LB/FT GROSS TORQUE @ 1440 RPM 7.2L (442) HEUI I6 TURBOCHARGED/AFTERCOOLED CATERPILLAR 3126B DIESEL ENGINE -inc: 2500 rpm governed speed
• DONALDSON DRY TYPE AIR CLEANER
• MICHELIN BRAND FRONT TIRES
• UP-LEVEL CONVENIENCE & DECOR PKG -inc: cloth interior beverage holder passenger grab handle dual coat hooks increased cab insulation door trim panels & driver side pocket
• GRAB HANDLE -inc: passenger side interior roof mount
• TRANS TEMP GAUGE -inc: lighted gauge located near shift tower
• INTEGRAL AIR CONDITIONING -inc: soft touch buttons for mode fan & temp controls visual function display Sanden compressor R134a alternate refrigerant
• 4-SPEED MT643D ALLISON AUTOMATIC TRANSMISSION -inc: increased cooling

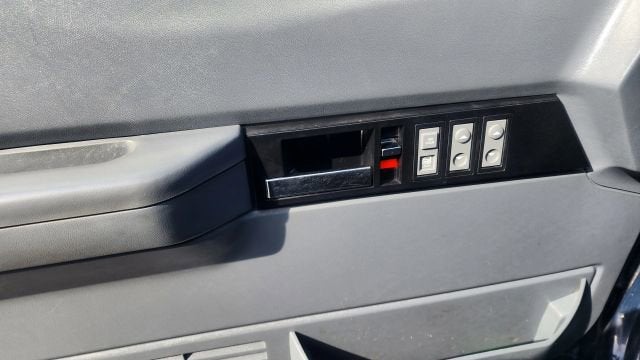

• PWR DOOR LOCKS
• AUTOMATIC POSITIVE LOCKING DIFFERENTIAL
• REAR STABILIZER BAR
• 750CCA DELCO LINEHAUL GROUP 31-1110 SERIES DUAL BATTERIES -inc: 1500 total CCA
• 8 100 LB TAPERED LEAF FRONT SUSPENSION
• TACHOMETER & ENGINE ALARM -inc: low oil pressure/high water temp indicator
• 16 900 LB 190S0S DANA SPICER SINGLE SPEED REAR AXLE
• FRONT 245/70R19.5F 12-PLY LOW PROFILE TIRES
• MICHELIN BRAND REAR TIRES
• OIL LUBRICATED FRONT WHEEL HUBS -inc: clear caps oil seals 75W-90 synthetic oil fill plugs & windows
• SLOPED HOOD -inc: forward tilt one-piece fiberglass hood (STD)
• SINGLE HORIZONTAL EXHAUST SYSTEM (STD)
• HEAVY DUTY REAR SHOCK ABSORBERS
• SOLAR-RAY TINTED GLASS -inc: all windows upper windshield shade band
• 175" WHEELBASE -inc: 102" CA 171" CE
• LOW PROFILE CHASSIS MODIFICATION -inc: 2.8" approx frame height reduction notched frame sidemember above rear axle horizontal exhaust modification
• REAR 19.5" x 6.75" 8-HOLE HUB PILOTED STEEL WHEELS
• DUAL ELECTRIC HORNS -inc: front bumper mount
• 1000W PHILLIPS BLOCK HEATER -inc: cord w/120v plug & plug protector
• CLOTH INTERIOR TRIM
• DAVCO 200 SERIES FUEL-WATER SEPARATOR W/HEATED ELEMENT
• (2) FRONT FRAME MOUNTED TOW HOOKS
• REAR 245/70R19.5G 14-PLY LOW PROFILE TIRES
• ELECTRONIC SPEED CONTROL
• 16 900 LB TAPERED LEAF REAR SUSPENSION -inc: HD rear shock absorbers
• 2-TONE EXTERIOR PAINT -inc: white upper
• HOBBS ELECTRIC ENGINE HOURMETER -inc: dash mount
• DUAL RH/LH 35 GALLON FUEL TANKS -inc: elect gas transfer or diesel balance line
• TRUCK APPLICATION (STD)
• 80 000 PSI YIELD STRENGTH STEEL FRAME
• ASHTRAY MOUNTED LIGHTER
• REAR HIGHWAY PREMIUM TRACTION TREAD
• DUAL 7" X 16" EXTERIOR SIDE MIRRORS -inc: stainless steel heads & brackets
• RH/LH 5" SPOT MIRRORS W/BRACKET MOUNT -inc: stainless steel heads & clamps
• TILT STEERING WHEEL -inc: 18" diameter wheel intermittent wipers
• INTERMITTENT WIPERS
• PWR WINDOWS
• 8 100 LB CAPACITY FRONT AXLE (STD)
• VINYL INTERIOR TRIM
• JUMP START PROVISIONS -inc: positive terminal located on curbside fender extension routed directly to starter and a bolt bolt on battery box for convenient grounding
• DELCO REMY 37/41 MT/OCP STARTER W/OVERCRANK PROTECTION
• 3.08 AXLE RATIO
• FRONT 19.5" x 6.75" 8-HOLE HUB PILOTED STEEL WHEELS
• Rear Wheel Drive
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights
• Fixed Bench Seat
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights

• Brakes
• Brake ABS System: Four Wheel
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.75 x 1.34
• Rear Brake Rotor Diam x Thickness (in): 14.75 x 1.34
• Cooling System
• Total Cooling System Capacity (qts): 32
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 100
• Exterior Dimensions
• Cab to Axle (in): 102
• Cab to End of Frame (in): 171
• Frame Width, Rear (in): 33.5
• Front Bumper to Back of Cab (in): 106.75
• Ground to Top of Frame (in): 31.5
• Ground to Top of Load Floor (in): N/A
• Height, Overall (in): 92.0
• Length, Overall w/o rear bumper (in): 277.75
• Overhang, Front (in): 34.75
• Overhang, Rear w/o bumper (in): 34.0
• Wheelbase (in): 175
• Width, Max w/o mirrors (in): 94.2
• Frame
• Frame RBM (N/A): 1378300
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.315
• Frame Type: C Channel
• Sect Modulus Rails Only (in³): 12.53
• Fuel Tank
• Aux Fuel Tank Capacity, Approx (gal): 35
• Aux Fuel Tank Location: RH Step
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: LH Step
• Interior Dimensions
• Front Head Room (in): 40.2
• Front Hip Room (in): 65.0
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 66.0
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 0.75
• Max Speed For Gradeability: 65
• Static Loaded Radius (in): 15.3
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 2.40
• Steering
• Steering Ratio (:1), On Center: 24
• Steering Type: Power
• Turning Diameter - Curb to Curb (ft): 50.1
• Summary
• Body Code: RQ2
• Body Style: Chassis Cab
• Vehicle Name: GMC TC6H042
• Suspension
• Axle Capacity - Front (lbs): 8100
• Axle Capacity - Rear (lbs): 16900
• Axle Ratio (:1) - Rear: 3.08
• Axle Type - Front: Reversed Elliot I-Beam
• Axle Type - Rear: Full Floating
• Shock Absorber Diameter - Rear (mm): N/A
• Spring Capacity - Front (lbs): 8100
• Spring Capacity - Rear (lbs): 16900
• Stabilizer Bar Diameter - Front (in): 1.34
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Tapered Leaf
• Tires
• Front Tire Capacity (lbs): 9000
• Front Tire Order Code: XTI
• Front Tire Size: 245/70R19.5F
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Rear Tire Capacity (lbs): 18160
• Rear Tire Order Code: YTY
• Rear Tire Size: 245/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 7280
• Weight Information
• Curb Weight - Front (lbs): 4452
• Curb Weight - Rear (lbs): 2504
• Gross Axle Wt Rating - Front (lbs): 8100
• Gross Axle Wt Rating - Rear (lbs): 18160
• Gross Combined Wt Rating (lbs): 60000
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 stud 275mm
• Front Wheel Description Cont.: Hub Piloted
• Front Wheel Material: Steel/Hub Piloted
• Front Wheel Offset (mm): 5.60
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 stud 275mm
• Rear Wheel Description Cont.: Hub Piloted
• Rear Wheel Material: Steel/Hub Piloted
• Rear Wheel Offset (mm): 5.60
• Rear Wheel Size (in): 19.5 x 6.75
